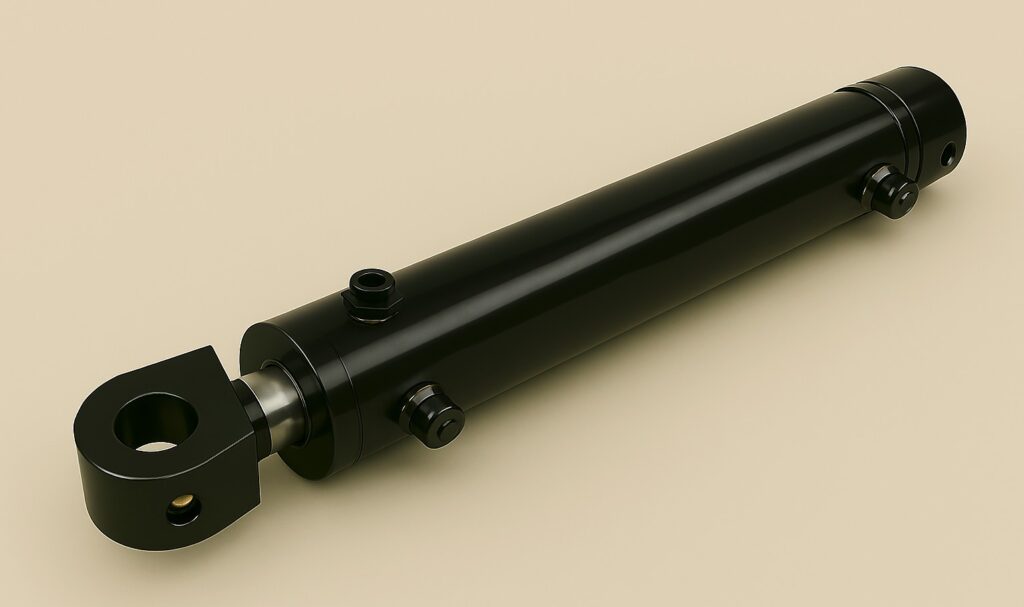

Thumb Hydraulic Cylinder
PWM Thumb Cylinders are precision-engineered, heavy-duty welded hydraulic cylinders designed specifically for use on mini excavators, tracked excavators, wheeled excavators, and backhoes in hydraulic thumb applications. These cylinders are purpose-built to withstand the severe mechanical stresses and unpredictable load conditions encountered in excavation, demolition, forestry, and material handling operations.
Engineered for durability and reliability, PWM Thumb Cylinders incorporate a robust construction and advanced sealing technologies to extend service life while minimizing downtime. Every cylinder is designed with features that enhance structural integrity, reduce wear, and simplify servicing, whether in the field or during scheduled maintenance in the shop.
The specialized design ensures smooth, consistent performance in harsh working environments, offering operators confidence that the thumb attachment will operate efficiently, even under extreme force and repeated cycling. PWM’s engineering approach also prioritizes serviceability, ensuring that routine maintenance tasks can be performed quickly and effectively to reduce machine downtime.
- Standard Engineering Features
- Steel-Guided Transfer Hose – Protects hydraulic lines from damage and provides reliable fluid transfer in demanding work environments.
- Oversized Spherical Bearing Mounts – Engineered for maximum load distribution, reducing stress concentrations and extending joint life.
- Custom Seal Package – Includes wear rings and high-pressure seals to minimize leakage, withstand extreme loads, and enhance long-term reliability.
- CAT-Style Heavy-Duty Piston Nut – Provides exceptional strength and secure retention of piston components, ensuring resistance against shock loads.
- Oversized Piston Stem – Improves bending resistance and enhances durability in high-load conditions.
- Fixed Hydraulic Cushions at Both Ends – Absorb shock at full extension and retraction, protecting both the cylinder and machine structure.
- Bolt-In Gland with High-Tensile Head Bolts – Facilitates secure assembly while allowing efficient disassembly for servicing or seal replacement.
- Engineering Advantages
- Designed to withstand extreme shock loads and rugged duty cycles.
- Optimized for precision movement and load control during thumb operations.
- Extended service life with enhanced wear protection and corrosion resistance.
- Easy to maintain with field-serviceable components and bolt-in gland design.
- Fully customizable bore sizes, stroke lengths, and mounting configurations available for OEM requirements.
