Smart Sensor Positioning Cylinders

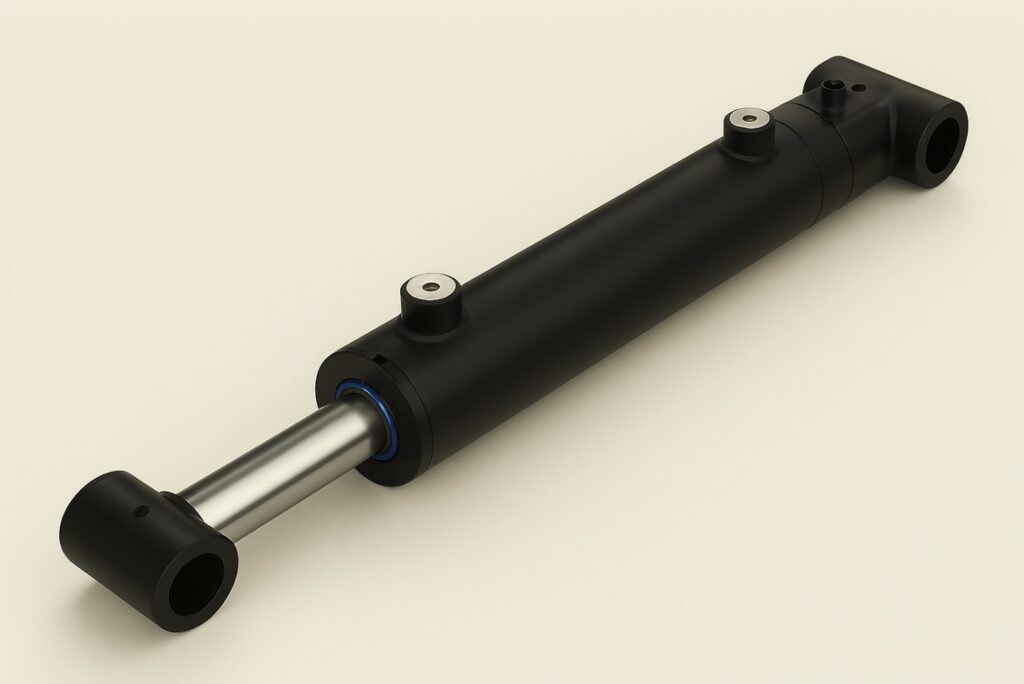

PWM Smart Sensor Cylinders are engineered to seamlessly integrate advanced position-sensing technologies into hydraulic cylinder applications, enabling precise monitoring, enhanced control, and optimized machine performance.Often referred to as electronic position-sensing cylinders, electro-hydraulic control cylinders, intelligent cylinders, or smart cylinders, this technology incorporates high-performance linear transducers that continuously communicate the piston’s position back to the hydraulic control system. The result is real-time feedback, greater system automation, and improved machine functionality.
With the growing demand for intelligent, sensor-instrumented solutions in heavy industrial, mobile, and agricultural machinery, PWM offers complete customization of smart cylinder designs. Every cylinder can be tailored to meet application-specific requirements, with configurable bore sizes, stroke lengths, and mounting options to match OEM specifications.
- Sensor Integration Options
- External Sensor Solution – Robust, modular design allowing for simplified serviceability and sensor replacement.
- Internal Sensor Solution – Fully integrated within the cylinder, offering superior protection against environmental exposure, impact, and vibration.
- Technical Capabilities & Optional Features
- Stroke ranges from 2″ to 120″ with precision-engineered linear motion.
- Minimum 1″ rod diameter for strength and durability.
- Operational pressure ratings up to 4,750 PSI.
- Output options: analog or digital, with temperature and velocity monitoring available.
- Standard resolution of 0.02″, ensuring highly accurate positional feedback.
- Electrical connectivity through M12 connectors.
- High cycle life with excellent resistance to vibration and shock.
- Compatible with various input power configurations.
- Minimum barrel bore size: 2.50″ diameter.
- ATEX and IECEx-approved linear transducer options available for hazardous environments.
