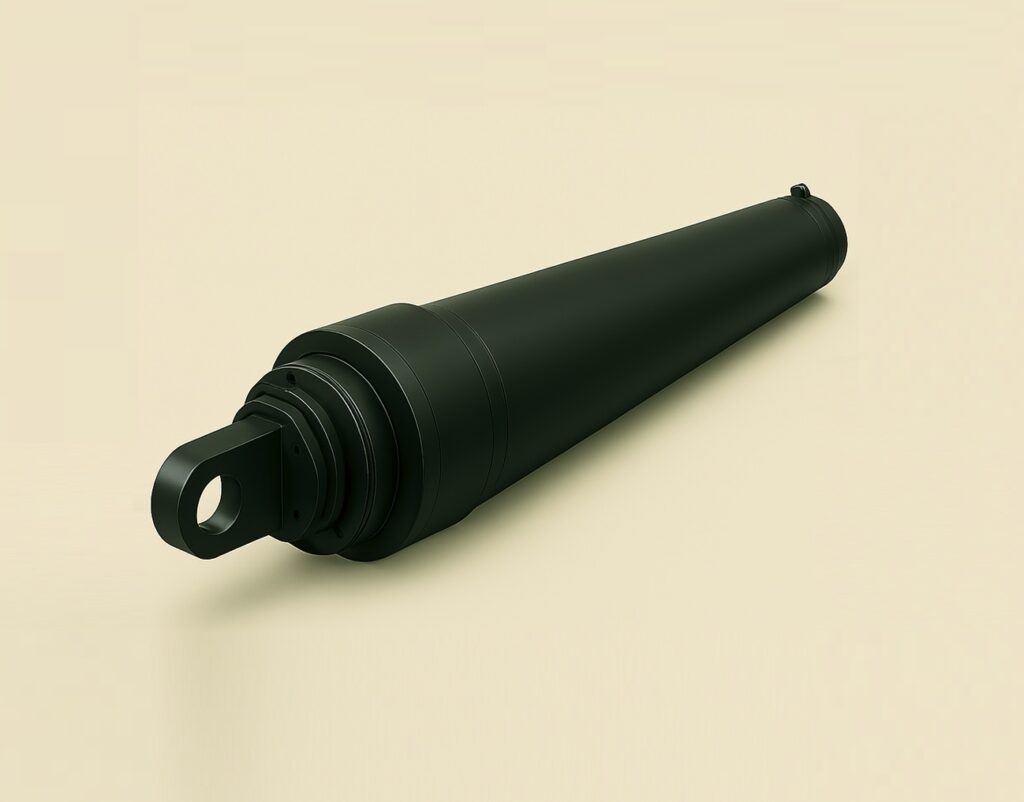

Mast Raising Hydraulic Cylinders
PWM provides a comprehensive range of advanced hydraulic cylinder solutions for the oil and gas industry, including highly specialized Mast Raising Cylinders. These telescopic cylinders are purpose-built to meet the complex mechanical and operational demands of mast deployment systems, where maintaining stability under uneven load conditions is critical.
Mast Raising Cylinders from PWM incorporate a hybrid design of single-acting and double-acting stages. The initial stages extend under single-acting force to raise the mast efficiently, while the final stage functions as a double-acting cylinder, providing the necessary force to pull the mast back over its center of gravity. This dual-action design enhances safety, control, and reliability during both deployment and retraction.
Standard PWM Mast Raising Cylinders are engineered to comply with oilfield equipment requirements. A common configuration includes a 60-inch retracted length, an 8.5-inch base bore, and an operating pressure of 2,500 PSI, supported with internal reinforcement to manage heavy dynamic loading. The cylinders are designed with tang mounting on both the rod and base, complemented by integrated grease zerks to ensure consistent lubrication and long service life in harsh operating environments.
Beyond standard models, PWM offers custom-engineered mast raising cylinders tailored to specific rig sizes and operational needs—ranging from smaller service rigs to large-scale mast structures. Our engineering teams collaborate closely with clients to optimize bore size, stroke length, mounting configurations, and seal technologies for maximum durability and performance.
Backed by over 40 years of hydraulic expertise, PWM leverages advanced CAD/CAM design tools, precision manufacturing, and rigorous quality assurance processes to deliver cylinders that excel in safety, reliability, and operational efficiency. Whether for new builds, upgrades, or replacements, PWM Mast Raising Cylinders set the benchmark for high-performance hydraulic solutions in the oil and gas industry.
